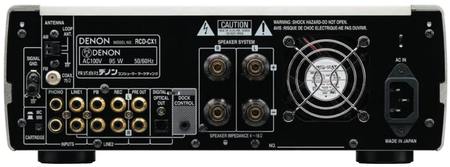

nput connections 1 x phono (MM/ MC)
1 x CD
1 x aux
1 x FM/AM antenna
Output connections 1 x optical digital audio
2 x pair speaker terminals
Power output (8 ohms, DIN, THD 0.07%): 37.5W + 37.5W
Power output (4 ohms, 1 kHz, THD 0.07%): 75W + 75W
Input sensitivity/impedance, Phono (MM): 2.5 mV / 47 kohms
Input sensitivity/impedance, Phono (MC): 0.2 mV / 100 ohms
Input sensitivity/impedance, CD/LINE: 130 mV / 47 kohms
Tone Control: Bass 100Hz +/- 8db, Treble 10kHz +/- 8 dB
Power supply: AC 120 V, 60 Hz
Power consumption: 50W, 0.3W standby
Dimensions (W x H x D) (mm): 300 x 110 x 341mm
Dimensions (W x H x D) (inches): 11-7/8" x 4-3/8" x 13-1/2"
Weight: 8.0kg, 17lbs 10-1/8oz.
