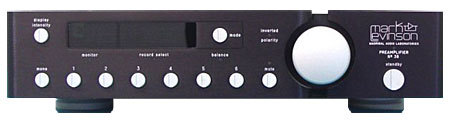

Remote-controlled dual-mono line-stage preamplifier with programmable input level offsets, input labels, and mute.
Gain: –73.1dB to +18.9dB plus "off."
Inputs: two stereo balanced (XLR), four single-ended (RCA), one Mark Levinson Link communications connector, one 1/8" minijack for external IR repeater.
Outputs: one balanced stereo main output pair (XLR), one single-ended stereo main output pair (RCA), two stereo record outputs (RCA), one Mark Levinson Link communication connector.
Input impedance: 100k ohms.
Output impedance: <6 ohms.
Input overload: >16V.
Maximum output: 16V RMS, balanced.
Power consumption: 40W.
Dimensions: 15.75" (400mm) W by 14.3" (363.2mm) D by 3.84" (97.5mm) H.
Weight: 35 lbs (16kg).
