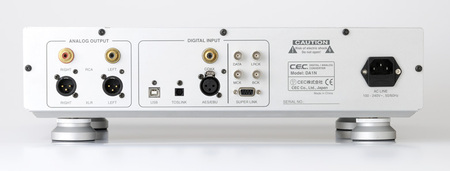

Digital Inputs SUPERLINK ×2(BNC×4/D-Sub 9P×1) USB(1.1)×1 AES/EBU(Pin2=Hot)×1 COAXIAL×1 TOS×1
Input Sampling SUPERLINK : 44.1kHz USB : 32–48kHz
Frequency AES/EBU : 32–192kHz COAXIAL:32–192kHz
TOS:32–96kHz
DAC PCM1792A×2
Digital Filter FLAT/PULSE
ΔΣOversampling 32fs/64fs/128fs( 32fs only above 88.1kHz)
Sample Rate Converter 96kHz ON/OFF(SUPERLINK/USB bypasses the SRC)
Frequency Response 20Hz–20kHz,-0.2dB(measured with "FLAT" digital filter)
Analog Outputs Balanced XLR(Pin2=Hot)×1 Unbalanced RCA ×1
Power Supply AC100V~240V, 50/60Hz
Power Consumption 20W
Dimensions 435(W)×350(D)×126(H)mm (incl. legs, buttons and terminals)
Weight Approx.14.5kg
Accessories AC power cord, BNC cable set(4 cables), remote control unit, 2 AA batteries, owner's manual
Color Silve
