TRIDENT DEFENSE - Power Protection System
Shunyata VENOM noise-reduction filters (6 elements)
Patented FeSi-1002 noise-reduction compounds
8 cryogenic treated Shunyata VENOM silver-plated outlets
Four isolated individually filtered circuits
Massive cryogenic grade CDA-101 copper buss array
Advanced hydraulic electromagnetic circuit breaker
2400 watt / 20-amp power rating
Dual chassis-- all aluminum case


Voltage / Current Rating

Input Voltage: 100 VAC – 120 VAC @ 50/60hz
Output Voltage: 100 VAC – 120 VAC @ 50/60hz (unregulated)
Maximum continuous current: 20 amperes
Dimensions

Height: 6”
Width: 13”
Depth: 9.5”
Weight: 15.5lbs
Ship Weight: 20lbs
Surge Protection

Maximum aggregate surge current: 60,000 amps
Maximum suppressed voltage per UL1449 = 400 volts
Maximum clamping voltage = 340 volts
[Hot-Neutral Mode] 8/20us current wave, single pulse = 40,000 amps
[Hot-Neutral Mode] 2 m/sec current wave, single pulse = 400 joules
[Hot-Gnd Mode] 8/20us current wave, single pulse = 10,000 amps
[Hot-Gnd Mode] 2 m/sec current wave, single pulse = 100 joules
[Neutral-Gnd Mode] 8/20us current wave, single pulse = 10,000 amps
[Neutral-Gnd Mode] 2 m/sec current wave, single pulse = 100 joules
Environmental:

Operating temp: 40-120°F – 4-48°C
Humidity: below dew point

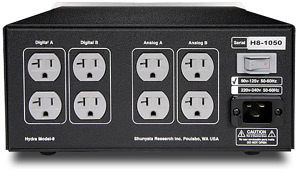

AC Outlets:

8 Hubbell 5362
AC Inlet:

IEC C19 - 16A/20A
