AUDIO INPUTS
Input Level Suitable for 2V sources (0.5 to 5.0V)
Input Sensitivity 130mV
Analogue Inputs 4 x DIN/RCA pair, 1 x RCA pair, 1 x DIN (for Naim phono amplifier)

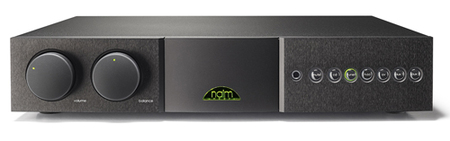

USER CONTROL INTERFACE
Front Panel Volume control, balance control and front panel buttons

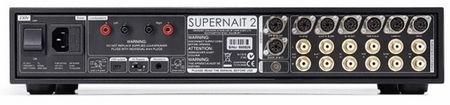

AUDIO OUTPUTS
Line Outputs Fixed (level) AV (DIN), HDD (DIN) 130mV, 600Ω
Line Outputs Variable (level) Pre-amp (DIN), bi-amp (DIN), sub (RCA pair) 775mV, <50Ω
Power Output +24V for Naim phono amplifier
Headphone outputs ¼ inch (6.35mm) TRS Socket
SPEAKER OUTPUTS
Power Output 80W per channel into 8Ω, 130W per channel into 4Ω
UPGRADES
Power Supply FlatCap, HiCap or SuperCap
CONNECTIVITY
Remote Control Infra-Red (RC5)
Remote Input 1 x 3.5mm jack on rear
Updates 1 x USB mini-B
POWER
Mains Supply 100V, 115V, 230V; 50 or 60Hz
Power Consumption (quiescent) 37VA
Power Consumption (maximum) 400VA
PHYSICAL
Dimensions 87 x 432 x 314 (H x W x D)
Weight 13.4kg
Supplied With NARCOM-4 remote control
OTHER
Suggested System CDX2 CD player or NDX network player
FINISH
Front Brushed and black anodised aluminium
Case Black powder coated aluminium
