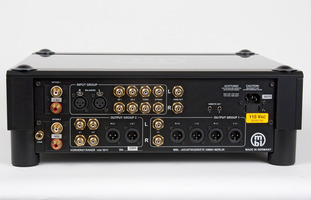

Inputs
7 inputs
XLR (1x), CD (2X),
High level/ tape (1x),
processor (1X), Option (2x)
Outputs
6 outputs in 2 groups
group 1:
XLR (2x), RCA (1x)
group 2:
XLR (1x), RCA (2x)
Frequency Range DC - 1.0 MHz
DC - 600 kHz
Output level
1Veff - 11Veff max.
Output Impedance
100Ω
Noise Distortion <0,0006%
(1 kHz, 2V)
Input Sensitivity
High level
315 mV
Signal to Noise
CD
108/110 dB, 1V/25Ω
High level
105/108 dB, 1 V/25Ω
Maximum loading level
11 Veff
High level
Input Impedance
CD
5 kΩ
High level
50 kΩ
processor
10 kΩ
Channel separation
95 dB
High level
Power Consumption
20 VA max.
Line
230/115Vac, 50/60Hz
Weight
19 kg, 42 lbs
Dimensions (WxHxD)
450 x 155 x 400 mm
18 x 6.1 x 15,7 inch
