D Digital-Analog-Converter
Based on Burr-Brown PCM5122:

32-bit/384kHz
Dynamic Range / SNR: 112 dB
THD+N: - 93 dB @ - 1 dBFS (Typical)
8X oversampling

Dual HD amplifiers and DSP

2x 32W/channel into 8 Ohm, high-efficiency (92%)
1 amp per channel provides perfect channel separation.
DSP with Olive`s patent-pending PRISM technology: dynamically adapts to acoustic properties of speaker model, music genre and other environment factors


High-speed processor

Flawless encoding and decoding of lossless audio format
Fast management and access to extensive music libraries
Simultaneous streaming of high quality audio to multiple rooms


Ultra-quiet 2TB hard drive

2.5” power-efficient AV hard drive
Holds approximately 20,000 HD tracks or 6,000 CDs in original quality


Networking

Wireless (802.11a/b/g/n)
Play music from Mac, PC, NAS (UPnP software required)

Bluetooth and Wi-Fi Direct™ interface

Stream music from portable devices and phones
Play music from music streaming services like Pandora, Spotify etc.
Requires portable device with Bluetooth or Wi-Fi Direct™ functionality, as well as apps and user account with respective music service providers. Native support for popular services is currently being evaluated.


Supported Audio Formats

WAV, AIF, FLAC, MP3, AAC, Apple Lossless, Ogg Vorbis


Audio Output

Analog:

Speaker out (24k gold-plated)


Digital (S/PDIF):

1x optical
1x coax (24k gold-plated) USB


USB

Backup of music to external USB HDD

Graphical User Interface

7 inch high-resolution LCD with capacitive touch-screen
Free iPhone/iPad/iPod and Android App. Coming soon.

Design

Fine-grade aluminum enclosure
Passive cooling without noisy fan
Painted in high-gloss white

Power consumption
Meets EUP standard. 0.5W in Standby/Hibernate.
Dimensions & Weight

Width: 12.3” (31.2cm)
Depth: 9.3” (23.6cm)
Height: 3.0” (7.6cm)
Weight: 4.9lb (2.2kg)

Package includes

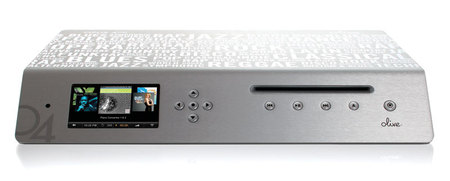

4HD Music System
Wi-Fi Antenna
Power Cord
User Guide
