Type Solid State
Configuration Dual-Mono / Fully Balanced
Power Supply Transformers 2 x 10VA (audio); 1 x 10VA (controller)
Power Supply Capacitance 44,000µF
Circuit Topology Open Loop

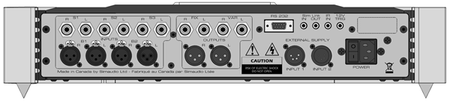

Balanced Inputs (XLR) 2 pairs
Single-ended inputs (RCA) 3 pairs
Input Impedance 22,000Ω
Input Sensitivity 200mV - 4.0V RMS
Balanced Outputs (XLR) 1 Pair
Single-Ended Outputs (RCA) 2 Pairs (variable & fixed)
Output Impedance (RCA / XLR) 50Ω / 50Ω
Gain Control M-eVOL2 (R-2R)
Gain 9dB
Signal-to-noise Ratio (20Hz - 20kHz) 120dB
Maximum Output Voltage - XLR 12 Volts
Maximum Output Voltage - RCA 6 Volts
Frequency Response 5Hz - 100kHz (+0 / -0.1dB)
Crosstalk @ 1kHz -116dB
IMD unmeasurable
THD (20Hz - 20kHz) 0.001%

12 Volt Trigger Output Operation Direct Logic (0V = off, 12V=on) using a 3.5mm
mono jack with an output impedance of 1000Ω
and current requirement of 12mA
SimLink™ Port 1 input + 1 output each on 1/8" mini-jack
RS-232 Port 9-pin female DB connector
IR input 1/8" mini-jack

Remote Control FRM-3 All-Aluminum Back-lit Full Function
Display Type 8 character dot matrix LED
Power Consumption @ idle 20 Watts
AC Power Requirements 120V / 60Hz 220-240V / 50Hz
Fuse Replacement 120V / 220-240V 200mA short slow blow / 100mA short slow blow
Shipping Weight 35 lbs / 16 Kgs
Dimensions (w x h x d) 18.75 x 4.1 x 16.81 in. (47.6 x 10.4 x 42.7 cm.)
