Date of introduction April 2012
Type Integrated DS player, pre-amplifier and power amplifier
Dimensions (H) 91 mm x (W) 381 mm x (D) 355 mm
(H) 3.58 inches x (W) 15 inches x (D) 14 inches
Weight 5.4 kg / 11.99 lb
Mains supply voltage (auto ranging) 100–120 V ac (±10%) 50–60 Hz
200–240 V ac (±10%) 50–60 Hz
Fuse 250 V, T10 A (not user replaceable)
Power consumption Sleep 15 W (HDMI disabled)
Sleep 18 W (HDMI enabled)
Maximum continuous 115 W
Supported file types FLAC, Apple Lossless (ALAC), WAV, MP3, WMA (except lossless), AIFF,
AAC, OGG
Audio sample rates 7.35 k, 8 k, 11.025 k, 12 k, 14.7 k, 16 k, 22.05 k, 24 k,
29.4 k, 32 k, 44.1 k, 48 k, 88.2 k, 96 k, 176.4 k, 192 k
Word depths 16–24 bits
Control protocol Compatible with UPnP™ media servers,
UPnP™ AV 1.0 control points

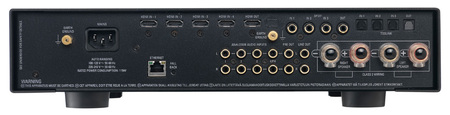

Back Panel Connectors
Analog inputs 4 x RCA Phono (pair) *
* Input 4 Moving Magnet, or re-configurable to Moving Coil or Line Level
Line out (post-volume) 1 x RCA Phono (pair)
Pre out (pre-volume) 1 x RCA Phono (pair)
HDMI in 4 x HDMI Type A
HDMI out 1 x HDMI Type A
S/PDIF In 3 x RCA phono
S/PDIF Out 1 x RCA phono
Optical In 3 x TOSLINK (JIS F05)
Optical Out TOSLINK (JIS F05)
Speaker outputs 4 mm binding post / banana / spade (pair)
Ethernet 100Base-T RJ45

Front Panel Connectors
Headphones
1 x 3.5 mm stereo jack
Auxiliary input 1 x 3.5 mm stereo jack

Input Electrical
RCA inputs (line-level) Input sensitivity: can be selected from 1 / 2 / 4 V RMS
Input impedance 10 k Ω
Auxiliary input Input sensitivity: can be selected from 0.5 / 1 / 2 V RMS
Input impedance 10 k Ω
MM Phono input* Max input voltage 50 mV RMS, 70 mV peak
Input impedance 47 kO 68 pF
MM Gain +40 dB (x100) @ 1kHz
SPDIF digital input Nominal input voltage 0.5 V peak
Input impedance 75 Ω

Output Electrical
Analog line outputs Max output voltage 6 V RMS, 8.4 V peak, +15.6 dBv
Output impedance 300 Ω
DC offset voltage < 5 mV
DAC output Output voltage 0 dBFS = 2 V RMS, + 6 dBv
Sample rate up-sampled to 358.2 kHz for 44.1/88.2 kHz
Up-sampled to 384 kHz for 48/96 kHz
Line output Max output voltage 6 V RMS, 8.4 V peak, +15.6 dBv
Output impedance 300 Ω
DC offset voltage < 5 mV
Headphones output Max output voltage 6 V RMS, 8.4 V peak, +15.6 dBv
Output impedance 11 Ω
DC offset voltage < 5 mV
HDMI 4-input to 1-output HDMI 1.4 repeater
SPDIF digital output Nominal output 0.5 V RMS
(when terminated with 75 Ω)
Output impedance 75 Ω

Audio Performance
Line inputs THD+N < 0.002 %
Dynamik range 110 dB
Signal to noise ratio 117 dB
Channel separation > 117 dB
Frequency response 2.5 Hz–120 kHz (-3 dB)
Pre-amplifier MM RIAA Tracking ±0.2 dB
Gain range - 80 dB to + 20 dB
Gain resolution 1 dB
Unity gain volume 0 dB = vol. 80
Power amplifier Power output 90 W RMS per channel into 4 Ω
THD+N < 0.015% (1 kHz, 1 W RMS into 4 Ω)
Dynamik range > 120 dB
Signal to noise ratio > 115 dB
Channel balance < ± 0.2 dB
Channel separation > 75 dB (1 kHz into 4 Ω)
Frequency response 6 Hz–25 kHz (-3 dB into 4 Ω)
Damping factor > 170
Speaker output voltage 28.8 V peak
Gain 28.6 dB (relative to pre out)
Load tolerance Unconditionally stable into all loudspeaker loads
Signal level for clipping 755 mV RMS, -2.5 dBv
