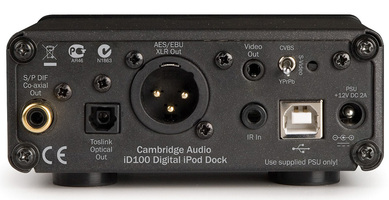

AES/EBU Signal type - Balanced
Signal output level - 2V
Output impedance - 110 ohms
Connection - 3-pin XLR
S/PDIF Signal type - Unbalanced
Signal level - 500mV
Output impedance - 75 ohms
Connection - RCA / Phono
Video output Composite/S-Video/
Component via 3-position toggle switch
PC sync interface USB Type-B connection
Power adaptor input: 12V DC, 2A
External IR input Modulated RC5 via 3.5mm jack
connection
Dimensions (W x H x D): 108 x 46 x 128mm (4.3 x 1.8 x 5.0’’)
Weight: 0.47Kg (1.02lbs)
