POWER OUTPUT: 200 watts per channel into 8 ohms. 300 watts per channel into 4 ohms, both channels driven, 1% THD.

FREQUENCY RESPONSE: (-3dB points at 1 W) 5Hz to 55 kHz.

INPUT SENSITIVITY: 0.93V RMS for rated output. (32.7 dB Gain) single-ended or balanced.

INPUT IMPEDANCE: 60K ohms single-ended, 120k ohms balanced differential.

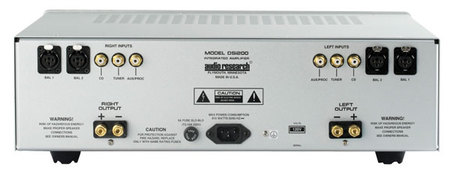

INPUTS: (5): BAL 1, BAL 2, CD(SE), Tuner(SE), Aux(SE).

MAXIMUM INPUT: 20V RMS BALANCED, 10V RMS SE.

OUTPUT POLARITY: Non-inverting from single-ended inputs. Balanced pin 2+ (IEC-268).

OUTPUT REGULATION: 0.06dB 8 ohm load to open circuit (Damping factor 167).


HUM & NOISE: 800 microvolts RMS (94dB below rated output IHF A-weighted.)

CONTROLS: Volume (104 steps), Select Input. Push Buttons: Power, BAL/SE, Mono, Mute.

POWER SUPPLY CAPACITANCE: 160,000 uF total.

POWER REQUIREMENTS: 100-125VAC 60Hz (200-250VAC 50 Hz) 445 watts at rated output (200WPC 8 ohms) 735 watts at 300WPC 4 ohms, 38 watts idle. Standby 1 watt.

DIMENSIONS: 19" (48 cm) W(standard rack panel) x 5.25" (13.3 cm) H x 14.25" (36.2 cm) D (front back panel). Optional handles extend 1.5" (3.8 cm) forward of the 1/4" thick front panel. Output connectors extend 0.9" behind rear panel.
WEIGHT: 37.2 lbs. (16.9 kg) Net; 43.3 lbs. (19.7 kg) Shipping.
Specifications subject to change without notice.
