Audio Specifications
Number of Channels

2
Analog Audio Outputs

Unbalanced and Balanced stereo, Fixed and Variable
Fixed Output Level

2.0Vrms Unbalanced
4.0Vrms Balanced
Variable Output Level

0 - 6.0Vrms Unbalanced
0 - 12.0Vrms Balanced
Output Impedance

600 ohms Unbalanced and Balanced
Frequency Response

4Hz to 40,000Hz, +0.5, -2dB (SACD)
4Hz to 20,000Hz, ±0.5dB (CD)
Signal To Noise Ratio

Better than 110dB (A-weighted)
Dynamic Range

Better than 100dB
Total Harmonic Distortion

0.0015% @ 1000Hz (SACD)
0.0015% @ 1000Hz (CD)
Channel Separation

Better than 98dB (1,000Hz)
Headphone Output Impedance

100 ohms
Digital Audio Specifications
Coaxial Sample Rate

44.1kHz
Optical Sample Rate

44.1kHz
XLR Sample Rate

N/A
BNC Sample Rate

N/A
USB Sample Rate

N/A
Digital Coaxial Input

0.5V p-p/75 ohms
Digital Optical Input

-15dbm to -21dbm
Digital XLR Input

N/A
Digital BNC Input

N/A
Digital USB Input

N/A
Digital Output Sample Rate

16-Bit/44.1kHz
Digital Coaxial Output

0.5V p-p/75 ohms
Digital Optical Output

-15dbm to -21dbm
Digital XLR Output

N/A
Digital BNC Output

N/A

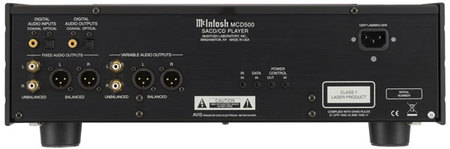

Connectivity
Fixed Outputs Unbalanced

1 Stereo
Fixed Outputs Balanced

1 Stereo
Variable Outputs Unbalanced

1 Stereo
Variable Outputs Balanced

1 Stereo
Digital Coaxial Input

1
Digital Optical Input

1
Digital XLR Input

0
Digital BNC Input

0
Digital USB Input

0
Digital Coaxial Output

1
Digital Optical Output

1
Digital XLR Output

0
Digital BNC Output

0
Digital DIN Output

0
Control
Rear Panel IR Sensor Input

Yes
Rear Panel Data Input

Yes
Power Control Input

Yes
Power Control Output

Yes
General Specifications
Disc Formats

CD, SACD, MP3 and WMA
Disc Capacity

1
Laser Type

Twin Beam
Laser Beam Wavelength

650nm (SACD)
790nm (CD)
Laser Power

CLASS IIa/CLASS I
Standby Power Requirement

<1.0 watt
Weights & Dimensions
Dimensions (W x H x D)

17-1/2" (44.45cm) x 6" (15.24cm) x 16-1/2" (41.91cm)
Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).
Weight

28.2 lbs (12.8 kg)
Shipping Weight

44.6 lbs (20.2 kg)
