Digital Inputs

(1) USB type B connector
Sampling Frequencies: 44.1, 48.0, 88.2, 96.0, 176.4, 192.0 kHz or DSD over PCM (DoP) at 2.8224 MHz.
Maximum input wordlength: 24 bits

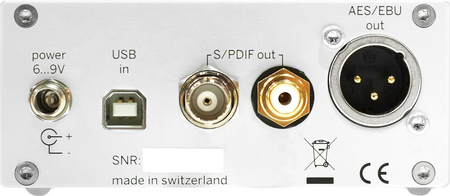

Digital Outputs

(1) XLR connector
(1) RCA connector
(1) BNC connector
Channel Status Data bits are set to all 0 on all three outputs

Synchronization

Synchronized via the clock internal to the INT204, i.e. the computer is slaved to the INT204
Sampling Frequencies: 44.1, 48.0, 88.2, 96.0, 176.4 or 192.0 kHz

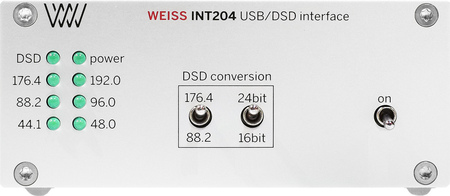

DSD Conversion

The DSD to PCM conversion can be configured to match the capabilities of the D/A Converter connected to the INT204. The sampling frequency can be chosen between 176.4 and 88.2 kHz while the output word length can be chosen between 24 and 16 bit.

Power

Bus power via the USB input for the USB input section. External power supply for the output section. External power supply voltage: 6–9 V DC at 0.15A. The USB input is isolated from the digital audio outputs and from the external power supply. There will be a Weiss optional power supply available soon. Please come back for more information later.
