Asynchronous up to 192kHz/24-bit. Please refer to the Async USB Audio FAQ and Setup Guide.
Maximum Sampling Rate: 192kHz
Bit Resolution: 24 bit
Outputs: RCA, 6.3mm headphone output
S/N Ratio: 96dB, 1kHz, A-weighted
THD+N : 0.005, 0dB, 1kHz
Frequency Response: 20-25kHz +/- 0.25dB
Maximum power consumption: 12-Watts.
Dimensions: Height: 2 inches ( 5.1cm ) Width: 8.5 inces ( 21.6 cm ) Depth: 9 inches ( 22.9 cm )
Included Accessories: USB cable (1 meter)

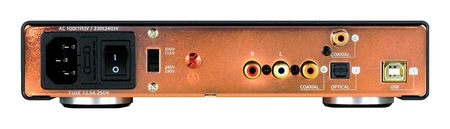

Digital Inputs: USB, Toslink, RCA x 2, transformer or optical isolated, AC coupled.
Output impedance : RCA, 100-Ohm
Volume Control: 32-bit digital attenuator
Output Voltage: 0dB, 1kHz: RCA 2.0Vrms
Recommended Headphone Impedance: 120-600 Ohm
AC voltage: 100V/110V/220V/230V
Available Colors: black and silver color
Weight : 2.64 pounds ( 1.2 kg )
Sample Rate Indicator: yes
