Type Solid State
Configuration Dual-Mono / Balanced
Power Supply Transformers 2 x 0.5kVA
Power Supply Capacitance 121,200µF
Class Of Operation A/AB

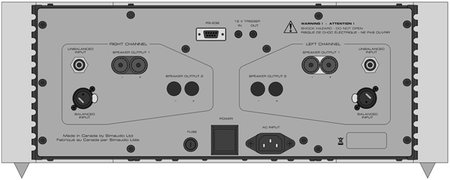

Balanced Inputs XLR - 1 pair
Single-ended Inputs RCA - 1 pair
Input Device Type J-FETs
Input Impedance 47.5KΩ
Input Sensitivity 1,100mV RMS
Output Device Type Bipolars - 12 per channel
Output Binding Posts WBT - 1 pair per channel
Output Power @ 8Ω 200 Watts
Output Power @ 4Ω 400 Watts
Output Power @ 2Ω 800 Watts
Output Power - Bridged Mono 800 Watts
Frequency Response 10Hz - 200kHz (+0/-3dB)
Output Impedance < 0.01Ω
Damping Factor (static) > 800
Gain 31dB
Signal-to-noise Ratio 106dB @ full power
Maximum Output Voltage 40 Volts
Slew Rate 42 V/µs
Maximum Current - Peak 48 amperes
Maximum Current - Continuous 22 amperes
Crosstalk @ 1kHz -105dB
IMD Unmeasureable
THD (20Hz - 20kHz @ 1 watt) 0.015 %
THD (20Hz - 20kHz @ 200 watts) 0.04 %

12 Volt Trigger Input/Output Operation Direct Logic (0V = off, 12V=on) using a 3.5mm
mono jack with an Input/Output impedance of
1000Ω and current requirement of 12mA
RS-232 Port 9-pin female DB connector

Power Consumption @ idle 55 watts
AC Power Requirements 120V / 60Hz 220-240V / 50Hz
Fuse Replacement 120V / 220-240V 8.0A long fast blow / 4.0 long fast blow
Shipping weight 90 lbs / 40 kgs
Dimensions (w x h x d) 18.75 x 7.5 x 17.5 in. (47.6 x 19.1 x 44.5 cm.)
