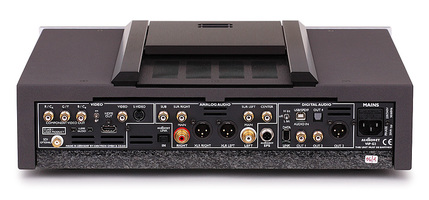

analogue audio outputs 3 pair RCA line, gold-plated
1 pair XLR balanced, gold-plated
digital audio outputs: 2 RCA, 75 Ohm, gold-plated
1 AES/EBU, 110 Ohm, gold-plated
1 Audionet HighBit interface
1 optical (TosLink)
digital audio inputs 1 USB, for USB-Audio and SPDIF
analogue video outputs 1 YUV interlaced + progressive/RGB interlaced
1 S-Video
1 Composite-Video (FBAS/Sync)
digital video outputs 1 HDMI 1.1 (compatible to DVI with HDCP)
external power supply 5-pin input

Technical Data
bandwidth 0 – 90,000 Hz (-3 dB)
THD + N front channels typ. 115 dB (A weighted) @ -60 dBFs
typ. 104 dB (A weighted) @ 0 dBFs
effect channels typ. 110 dB (A weighted) @ -60 dBFs
SNR 111 dB
channel separation > 130 dB @ 10 kHz
output impedance 33 Ohm real
max. output voltage 3.5 Veff.
power consumption max. 50 W
dimensions W 430 mm * H 120 mm * D 360 mm
weight 18 kg
