1 x USB PCM / DSD Digital (PCM up to 384kHz & DSD up to DSD256 )
1 x Coaxial Digital S/PDIF (PCM up to 192K supporting DoP format DSD64)
1 x Optical Digital S/PDIF (PCM up to 192K supporting DoP format DSD64)
1 x Bluetooth or WiFi receiver module (optional).
1 x Analog Stereo RCA

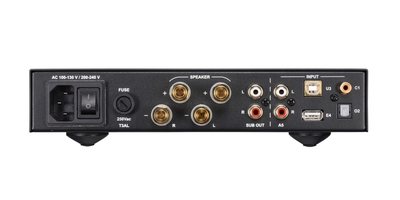

Outputs:
1 x pair of stereo speaker (binding posts) output
1 x pair of stereo RCA (6V)
Specifications:
USB Sampling Rates: 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHz, 384KHz and DSD 2.8MHz, 5.6MHz, 11.2MHz
S/PDIF Sampling Rates: 44.1KHz, 48KHz, 88.2KHz, 96, 176.4KHz, 192KHz, 384KHz (Coaxial)
Maximum Sampling Rate: 32-bits
Bit Resolution: 16-32-bits
Power output: 100W x 2 (8-Ohm)
THD+N: 0.005%
SNR = 95dB
Peak Output Power: 280w
Frequency Response: 10Hz to 50kHz
Dimensions: 235 mm W x 281 mm D x 55 mm H (including feet)
Weight: 4.3Kg
Worldwide AC voltage: (90VAC~130VAC // 210VAC~ 250VAC) With Voltage Select Switch
AC Fuse: Slow-blow, 3A, 250VA
