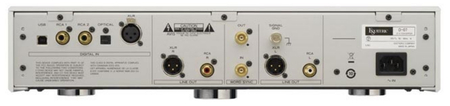

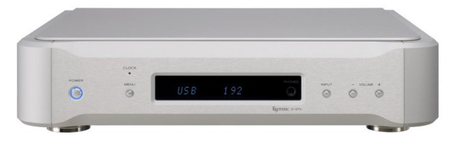

Analog output Jacks XLR (2ch) ×1
RCA (2ch) ×1
Headphones ×1
Output impedance XLR: 100Ω
RCA: 25Ω
Maximum output level
(1 kHz, with full-scale input) XLR: 2 .45 Vrms (when set to 0 dB with 10 kΩ load)
RCA: 2 .45 Vrms (with 10 kΩ load)
PHONES: 20 mW + 20 mW (with 32 Ω load)
Frequency response 5 Hz to 55 kHz
Signal-to-Noise Ratio (S/N) 115dB
Total harmonic distortion 0 .0015% (JEITA)
Digital input Balanced digital input XLR (5 .0 Vp-p/110 Ω) ×1
Coaxial connector RCA (0 .5 Vp-p/75 Ω)×2
Optical digital connector OPTICAL (–24 .0 to –14 .5 dBm peak) ×1
USB port B connector ×1
Input sampling frequencies 32, 44 .1, 48, 88 .2, 96, 176 .4, 192 (kHz)
Note: The XLR input (only) supports DSD input in ES-LINK (single) format
Clock sync output Jack BNC×1
Output frequency 44 .1, 48, 88 .2, 96, 100, 176 .4, 192 (kHz/rectangular wave)
22 .5792, 24 .576 (MHz)
Same frequency as input (when set to THRU)
Output level Equivalent to TTL levels (with 75 Ω load)
Clock sync input Jack BNC×1
Input frequency 44.1, 48, 88.2, 96, 100, 176.4, 192 (kHz)
10, 22.5792, 24.576 (MHz)
Input impedance 75Ω
Input level Square wave: equivalent to TTL level
Sine wave: 0 .5–1 .0 Vrms (with 75 Ω load)
General Power supply AC 230V, 50Hz
AC 120V, 60Hz
AC 220V, 60Hz
Power consumption 7W
External dimensions
(W×H×D, including protrusions) 445 x 106 .5 x 356 mm
(17 1/2" x4 2/8" x 14 1/8")
Weight 10 .4 kg (22 .93 lb)
