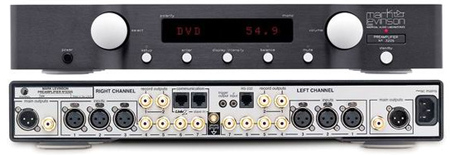

Connector Complement 3 balanced (female XLR) stereo inputs
4 single-ended (Mark Levinson-RCA) stereo inputs
1 balanced (male XLR) stereo main output
1 single-ended (Mark Levinson-RCA) stereo main output
2 single-ended (Mark Levinson-RCA) stereo record outputs
2 8-pin RJ-45 connectors for Link c ommunication
1 6-pin modular RJ-11 connector for RS-232 c ommunication
1 3.5 mm mini-jack for trigger output
1 3.5 mm mini-jack for IR input
1 phono ground terminal
1 IEX-standard AC mains connector

Crosstalk
less than 90 dB (any input to any output, input terminated)
Dimensions width: 17.75" (45.1cm)
height: 2.915" (7.4cm)
depth: 14.04" (35.7cm)

Frequency Response
10 Hz-40 kHz: ±0.2 dB
Gain 0, 6, 12, or 18 dB (line-level stage)

Gain Resolution
1.0 dB increments up to 23.0 dB on front panel (-57 dB)
0.1 dB increments above 23.0 dB on front panel (-57 dB)
Input Impedance 100k

Input Overload
when gain is set to +18 dB: 1.6V on XLR, 0.8V on RCA
when gain is set to +12 dB: 3.3V on XLR, 1.6V on RCA
when gain is set to +6 dB: 6.6V on XLR, 3.3V on RCA
when gain is set to 0 dB: 13.2V on XLR, 6.6V on RCA
Operating Voltage 100V, 120V, 220V or 230V AC power at 50 or 60 Hz (preset)

Output Impedance
less than 50ohms
Power Consumption 50 watts maximum

Residual Noise
20 Hz to 20 kHz, input terminated: less than -94 dBV
Shipping Weight 30lb (14 kg)

THD + Noise
less than 0.001%
Volume Control Range 80.0 dB (maximum)
