Shape 2–channel D/A converter
Sampling frequency COAX/OPT input: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192 kHz
USB input: 32kHz, 44.1kHz, 48kHz, 96kHz
Digital input USB(B type), OPT, COAX
Digital output COAX , OPT
Analog output RCA unbalance 1system(18mm pitch),
headphone 1system
LINE output voltage/ competance 2.1V/300Ω
Headphone output 130Mw+130Mw(600Ω), 80Mw+80Mw(32Ω), 40Mw+40Mw(16Ω)
Frequency response 2Hz ~60kHz(+0, -3.0dB)
THD, S/N Ratio 0.004%, 112dB

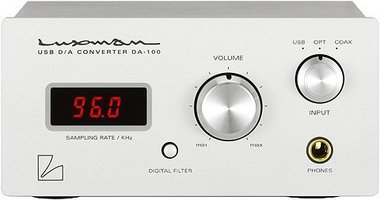

Peripherals [Front panel] input selector(USB/OPT/COAX), sampling frequency display(32, 44.1, 48, 88.2, 96, 176.4, 192 kHz(3digits 7segment red LED), volume, headphone output connector, digital filter selector

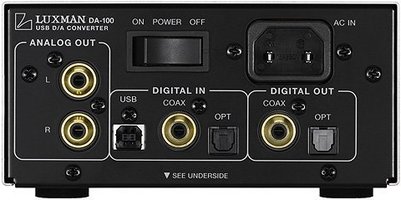

[Rear panel] power cord, AC inlet, USB input connector, COAX input connector, OPT input connector, COAX output connector, OPT output connector, analog output connector(RCA)
Consuming power 7W(Electrical Appliances and Materials Safety Act)
Dimension, Weight 149(W)x70(H)x232(including front panel knob:14mm, rear panel connectors 8mm)(D)mm, 2.3Kg
Accessories Remote control,
Power cord(JPA-10000: with polarities indicated)
