- Conversion: 32bit, PCM up to 192k, 64xDSD, 128xDSD.
- Dynamic Range: 128dB (ESS Sabre chipset in 8 mono to 2 stereo config.) THD DAC: -110dB.

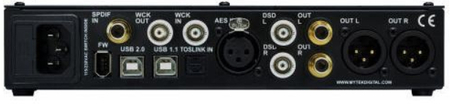

- Digital Audio Inputs: SPDIF, AES/EBU, Toslink all up to 192k single wire.
(64xDSD and 128XDSD SDIF DSD interface on Mastering Version).
- Clock: Internal Clock Generator (10ps jitter), Wordclock In and Out, or sync to incoming digital
audio input with low jitter JET (tm) PLL.
- Internal Async Hardware Upsampling- 16bit 44.1k etc. can be optionally upsampled prior to
conversion to 192k/24bit with clock jitter eliminated.
- Transparent, 1dB stepped programmable analog attenuator, separate for main out and headphones.
- Relay bypass of the attenuator for direct purist DAC out.
- A pair of unbalanced RCA analog outs for preamp functions (assignable to volume control) (In
Preamp Version).
- High Current, High Slew Rate ultra low distortion 500mA hi-fi headphone amp.
- Worldwide user switchable linear power supply.
- Online downloadable firmware updates. - Ability of converting standard digital audio inputs into
computer FW/USB input.
- Optional infrared remote (avail 2012).
- Enclosure: Compact portable 1/2 rack space 1.72in H x 8.5in W x 8.5in D.
- Weight 6 lbs.
User Menu Choices:
- Functions assignable to buttons: MUTE, PHASE INVERT, MONO, DIM
- Selection of clock choices
- Choice of upsampling or not
- Selection of slow or fast/steep filter for PCM
- Selection of 3 filters for out of band DSD
- Assignable input selection (display only active)
- Dimmable intensity of display/led meter
