· Belt-drive guarantees ideal data sampling
· Drive unit is capsuled in solid, low-resonance chamber
· The special drive unit construction results in warm, full-bodied sound
· Latest D/A-converting technology with selctable sample rate conversion to 96kHz/24bit
or 192kHz/24bit for relaxing high-range reproduction (also for external digital sources)
· Balanced input and output terminals
· 2 digital inputs (S/P DIF standard up to 192kHz) for the connection of further digital
sources: 1x optical LWL, 1x cinch for 75Ohm coaxial cable
· 1 balanced analog input, XLR 3pol., for the connection of an analog source
(e.g. FM Tuner), can be used for cinch via adapter
· Balanced processing of the analog signal from the D/A converter for higher dynamics
· Separation of supply voltage for analog and digital circuit parts minimizes the influence
of digital high frequency on the analog output signal
· Additional filtering of supply voltage for the analog circuit part for an undistorted sound
experience
· Fixed and variable output
· Analog volume control in 60 increments for direct connection to power amps
(preamp-function)
· 1 balanced analog output, XLR 3pol.
· 1 unbalanced analog output, cinch
· 1 unbalanced analog TAPE output, cinch, for analog tape recordings
· Analog outputs are equipped with X-Amp2 output modules, proven and tested in the
Reference Line CD Player 069
· Selectable output amplification of the analog outputs for the adjustment to connected
equipment: fix (for the connection to preamplifiers or integrated amplifiers) or volume
selectable (for the connection to power amplifiers or active loudspeakers)
· 2 digital outputs (S/P DIF standard) for digital recordings: 1x optical LWL, 1x cinch for
75Ohm coaxial cable
· MMI slot for future extensions (inputs and outputs of virtually any kind)
· SETUP-menu for individual adjustment of basic functions:
o Automatic start after readout of CD can be selected
o Output-amplification FIX or VARIABLE
o Serial number can be read out in display if desired
o Information like status of drive unit incl. Play, Pause and Stop can be read
out in display if desired
o Wake-Up volume can be programmed (in VARIABLE)
o Factory-provided settings can be restored at any time
· Brightness of display adjustable in 4 steps, display-off function
· Vibration-isolating feet with carbon fibre clips for ideal resonance decoupling
· Power controling of other Burmester devices, Master/Slave via DC IN/OUT
· BURLINK for external control via RS-232 and USB as standard
· Remote control 005 included

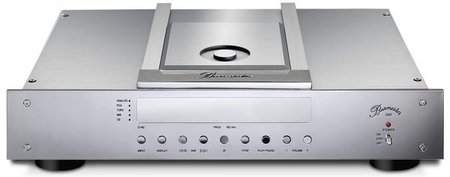

Type: Single-box CD player
Transport: Phillips with belt drive
Sampling rates: 96kHz/24 bit – 192kHz/24 bit
Digital Inputs:
1 x optical (TOSLINK)
1 x RCA
Digital Outputs:
1 x optical (TOSLINK)
1 x RCA
Analog Inputs:
1 x XLR
Analog Outputs:
1 x XLR (balanced)
1 x RCA (Unbalanced)
1 x RCA (TAPE) (Unbalanced) with preset volume.
Remote IN/OUT for remote controlling of other Burmester-devices
BurLink for external controlling via RS-323 and US
Dimensions: 483mm (W) x 114mm (H) x 335mm (D)
Weight: 13 kg
