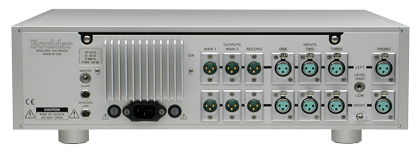

NALOG INPUTS
3 Balanced Line, 1 MC/MM Phono
OUTPUTS
2 Balanced Main, 1 Record
PHONO
Hi(MC) / Lo(MM) Gain Selection
VOLUME
100 dB range in 0.5 dB steps
MAX GAIN
20 dB Line, 80 dB MC Phono
MAX OUTPUT
14.0 Vrms
CLIP TO NOISE
118 dB
FREQ RESPONSE
+0, -0.03 dB, 20 Hz to 20 kHz
THD+N, 2V OUT
0.0015%, 20 Hz to 20 kHz
SYSTEM
Boulderlink to Power Amps
SIZE
18.0 wide, 5.75 high, 15.85 deep (in.)
WEIGHT
35, Shipping: 49 Pounds
POWER
120 VAC, 50-60 Hz, 75 W
