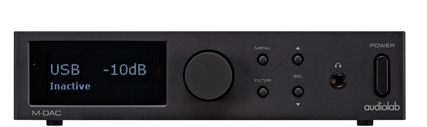

Model M-DAC
General description Digital-to-analogue converter
DAC ESS Sabre32 9018 chip
Resolution 32 bits
Maximum Sampling Frequency 84.672MHz
Digital input 2 x 24-bit/192kHz coaxial ,2 x 24-bit/96kHz Toslink optical, 1 x 24-bit/96kHz USB
Digital output 1 x coaxial, 1x Toslink optical
Output voltage RCA: 2.25V RMS,XLR: 4.5V RMS
Total Harmonic Distortion RCA: <0.002%; XLR: <0.0008%
Frequency response 20Hz - 20kHz (± 0.2dB)
Dynamic range RCA: >115dB;XLR: >122dB
Crosstalk RCA: <-120dB; XLR: <-130dB
Dimensions (H x W x D) 59 x 250 x252mm
Power requirements (depending on region) 220--230V /100-120V (50 ~ 60Hz)
Colour Black, Silver
Standard accessories power cord, remote control handset, batteries, user manual
