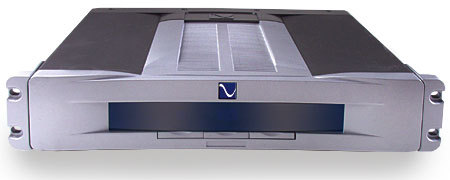

AC regenerator.
Nominal input voltage: 105–135VA US, 215–245VAC Europe/Asia.
Maximum continuous load: 1200VA US, 1500VA Europe/Asia.
Dynamic power delivery: 0.5s, >3600VA US, 5000VA Europe/Asia.
Voltage regulation: ±0.5V US, 1VAC Europe/Asia.
Output distortion, input 220–240VAC: 1200VA resistive load <0.9%.
Output distortion, 230V: 240VAC, 1200VA reactive load <0.9%.
Output distortion, input 110–130VAC: 1200VA resistive load, <0.5%.
Output distortion, input 110–130VAC: 1200VA reactive load, <0.5%.
Output impedance: <0.015 ohm.
Noise reduction (all zones): 100kHz–2MHz, >80dB.
Efficiency at 1200VA: resistive load, >80%; reactive load, >85%.
Input frequency: 45–65Hz.
Undervoltage limit: 90VAC US, 175VAC Europe/Asia.
Overvoltage limit: 145VAC US, 275VAC Europe/Asia.
Protection modes: L-N, L-G, N-G.
Energy dissipation: 2160J US, 2142J Europe/Asia.
Peak current surge: 144,000A US, 84,000A Europe/Asia.
Maximum voltage surge: 6kV.
Clamp level: 330V US, 800V Europe/Asia.
Telco protection: 320J, 395V.
Coax insertion loss: <1dB.
DC trigger configuration: tip positive.
DC trigger voltage: 5–15V DC.
Dimensions: 17" (435mm) W by 4" (100mm) H by 16.5" (425mm) D.
Weight: 35 lbs (15.9kg).
