OUTPUT LEVEL
- Nominal level : 0.75 V RMS.
- Maximum output level : 12 V RMS.
- Output stage output impedance : < 10 Ohms.
- Corrected output impedance # 330 Ohms.

FREQUENCY RESPONSE
These values for any level to 17 V RMS.
- +/- 0.1 dB, 10 Hz - 100 kHz.
- +/- 1 dB, 6 Hz - 300 kHz.
- +/- 3 dB, 3 Hz - 0.65 MHz.

INPUT SENSITIVITY
- Nominal level : 150 mV.
- Saturation level : 6 V RMS.
- Nominal input impedance : 50 kOhms.
GROUP DELAY
Propagation delay < 300 ns stable with frequency from DC to 200 kHz.

DISTORTION
Figures valid for all levels from 0 to 25 V.
- Dynamic : TID < 0.01 % (- 80 dB).
- Static : THD < 0.01 % (- 80 dB).

SPEED
- Slew rate of the amplification stages : > 500 V/us
- Rise time : < 700 ns.

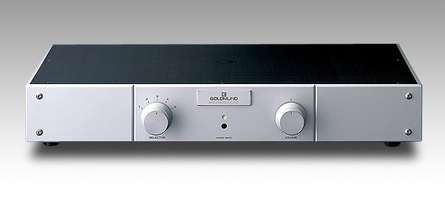

The Goldmund SRP2.3
Preamplifier provides a new level of
flexibility by allowing analogue and
digital sources to be connected to
the same preamplifier (using the
Alize 4 optional module)
With its revolutionary new built-in “
High-Inertia” power supply circuitry,
it provides extreme dynamics and
ultra-low noise modulation, giving
extreme transparency
to the most subtle signals.
Its new finish matches the whole
Goldmund line of electronics.

CROSSTALK
- Separation : > 90 dB between channels.

NOISE
- Signal-to noise ratio on line input : > 90 dB.
- Weighted ASA A : > 105 dB.

OPERATING TEMPERATURE
- Room temperature : -30 to +40 degrees Celsius ( -22 to +104 degrees Fahrenheit).
- Internal temperature : +45 to +65 degrees Celsius ( +113 to +149 degrees Fahrenheit).

POWER SUPPLY
- Nominal line voltage : 110 or 220 V.
- Input voltage range : +/- 15 %.
- Maximum power consumption : 20 W.

GROUNDING
- Common ground and earth.
- Chassis connected to signal grounding.

FRONT PANEL CONTROLS
- VOLUME control.
- SELECTOR switch.

REAR PANEL CONNECTORS AND CONTROLS
- AC line connector 3 lugs.
- Output and input connectors RCA (right and left).

SIZE AND WEIGHT
- 44 cm W x 30 cm D x 6.5 cm H.
- Weight : 5 kg.
