FREQUENCY RESPONSE: +0-3dB, 0.2Hz to 160kHz at rated output (Balanced, 200k ohms load)

DISTORTION: Less than .01% at 2V RMS BAL output.

GAIN: Main Output : Selectable for each input: 24dB, 18dB, 12dB Balanced output (18dB, 12dB, 6dB SE output). Record output: 0dB (Processor input: 0dB balanced).

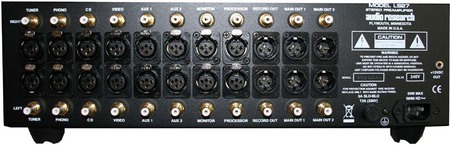

INPUT IMPEDANCE: 120K ohms Balanced, 60K ohms SE . Inputs (8): Tuner, Phono, CD, Video, Aux 1, Aux 2, Monitor, Processor (XLR and RCA connectors).




OUTPUT IMPEDANCE: 700 ohms Balanced, 350 ohms SE Main (2). 20K ohms minimum load and 2000pF maximum capacitance. Outputs (3): 2 Main, 1 Main, 1 Record (XLR and RCA connectors).

OUTPUT POLARITY: Non-inverting.

MAXIMUM INPUT: Low Gain: 48V RMS BAL, 24V RMS SE, Medium Gain: 24V RMS BAL, 12V RMS SE, High Gain: 12V RMS BAL, 6V RMS SE.

RATED OUTPUTS: 2V RMS 1Hz to 100kHz into 200K ohm balanced load (maximum balanced output capability is 15V RMS at less than 0.5% THD at 1kHz)

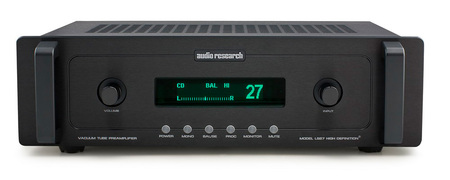

CONTROLS: Rotary volume selector (104 steps) and rotary input selector. Push buttons: Power, Mono, BAL/SE, Proc, Monitor, Mute. Also remote buttons: Display, Bal L, Bal R, Hours, Invert, Gain.

POWER SUPPLIES: Electronically regulated low and high voltage supplies. Automatic 50 sec. warm-up/brown-out mute. Line regulation better than .01%.

NOISE: 1.3uV RMS residual IHF weighted balanced equivalent input noise with volume at 1 (100 dB below 2V RMS output).


TUBE COMPLEMENT: 2-6H30 dual triode. (Hybrid JFET/tube audio circuit, solid-state power supply).

POWER REQUIREMENTS: 105-130VAC 60Hz (210-260VAC 50/60Hz) 50 watts maximum.

DIMENSIONS: 19" (48 cm) W x 5.25"(13.4 cm) H (standard rack panel) x 13.3"(33.8 cm) D. Handles extend 1.50" (3.8 cm) forward of the front panel.

WEIGHT: 16.3 lbs. (7.4 kg) Net; 23 lbs. (10.5 kg) Shipping.

Specifications subject to change without notice.
