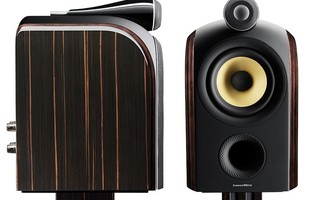

Model PM1
Description 2-way vented-box system
Technical features Nautilus™ tube loaded tweeter with carbon fibre reinforced aluminium dome
Kevlar® brand fibre cone bass / midrange
Flowport™
Drive units 1x ø25mm (1in) reinforced aluminium dome high-frequency
1x ø130mm (5 in) woven Kevlar® cone bass / midrange
Frequency response 48Hz - 22kHz ±3dB on reference axis
Frequency range -6dB at 42Hz and 60kHz
Dispersion Within 2dB of reference response
Horizontal: over 60º arc
Vertical: over 10º arc
Sensitivity 84dB spl (2.83V, 1m)
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m)
<1% 110Hz - 22kHz
Nominal impedance 8Ω (minimum 5.1Ω)
Crossover frequency 4kHz
Recommended amplifier power 30W - 100W into 8Ω on unclipped programme
Max. recommended cable impedance 0.1Ω
Net weight 9.3kg (20.5lb)
Finishes Cabinet
Real wood veneers
Mocha Gloss
Grille Black
Height 620.5mm (25.6in) excluding spikes
Width 268mm (10.6in)
Depth 300mm (11.8in)
