Response 20-20kHz (+0 -0.5dB).
Distortion 0.01%.
Noise and hum – 100dB Aux, -90dB Phono. Output rated 2.5V.
Maximum output 10V.
Input sensitivity and impedance: high level 0.25V (10V max) at 50k, phono 2mV (100mV max) at 47k and 65pF.
Program equalizer: 30, 150, 500, 1500 and 10,000Hz boost or cut 12dB. LF filter 50Hz at 12dB/octave. HF filter 7kHz at 12dB/octave.
Voltage gain 20dB Aux, 62dB Phono.
Compandor ratios from 1:2 compress to 2:1 expand.
Monitor Amplifier: 20W/ch into 8 ohms at 0.01% distortion, response 20-20kHz (+0
-0.2dB), sensitivity 0.75V, input impedance 27k, signal to noise A weighted 100dB.

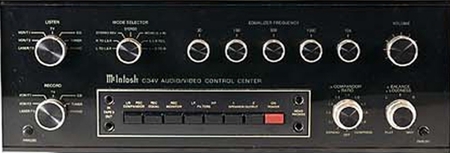

Size 5-7/16"H, [Front panel width was 16-1/8" in early units (C 34V) and 17-1/2" in
later units (C 34V W).] 13"D behind panel.
Weight 26 lb.
